This 2 sides soft close attachments work with all 16″ hole center flat track of sliding door system. It effectively provide soft close and soft open,Not only to holds door securely in place closed, but also to smoothly brake door sliding then pull into final position that way prevent pinched fingers between door and jamb.Completely open or close your door before install,the correct location for the soft close attachment is between 1st and 2nd hole on both sides of track.

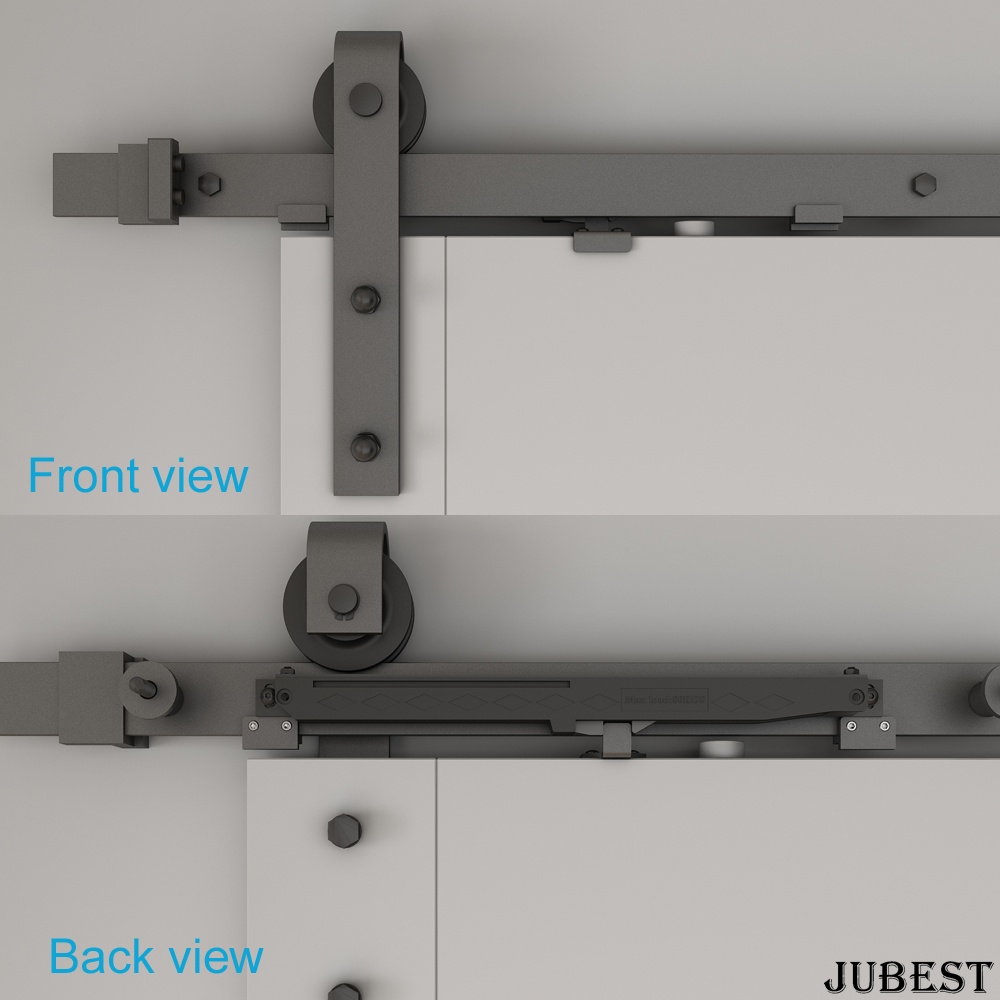

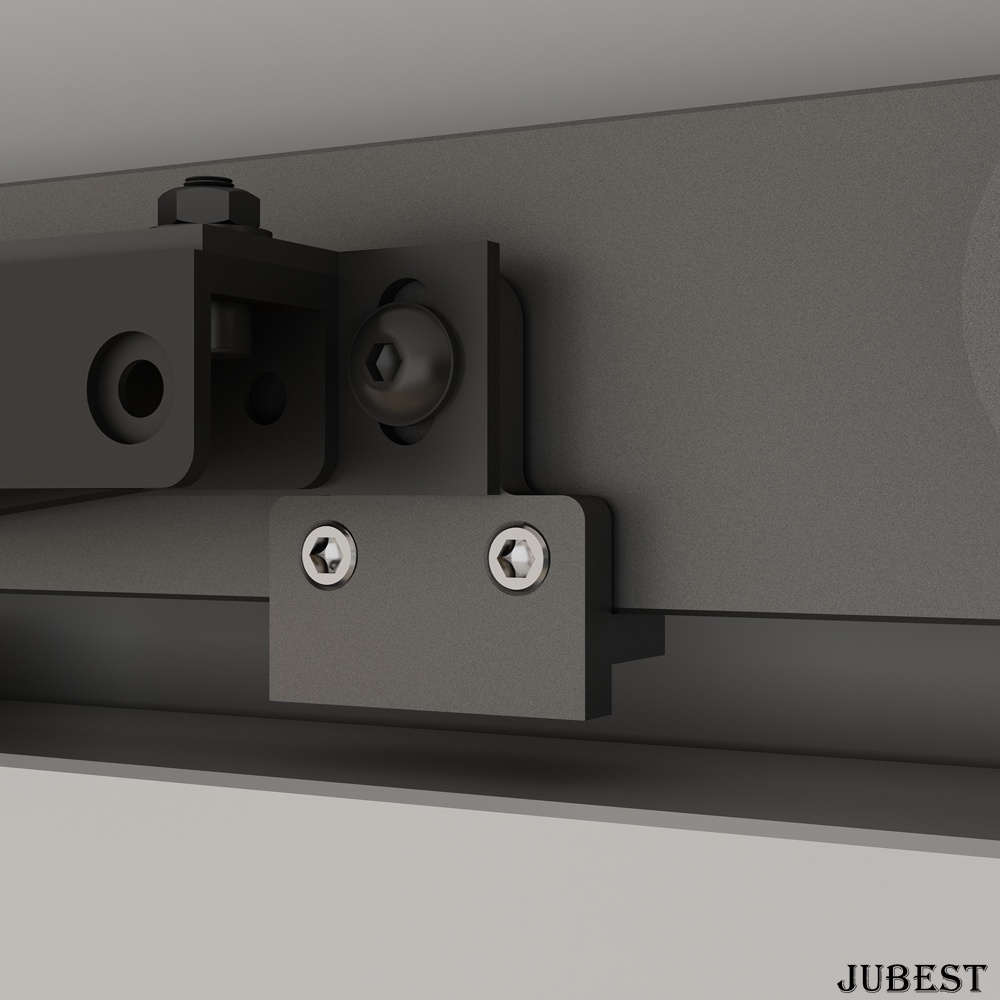

No drilling hole required on the track, simply attach the soft close onto the back of track with the clips.Position the actuator on door top to hit the slider of soft close, secure the clips with jackscrews.

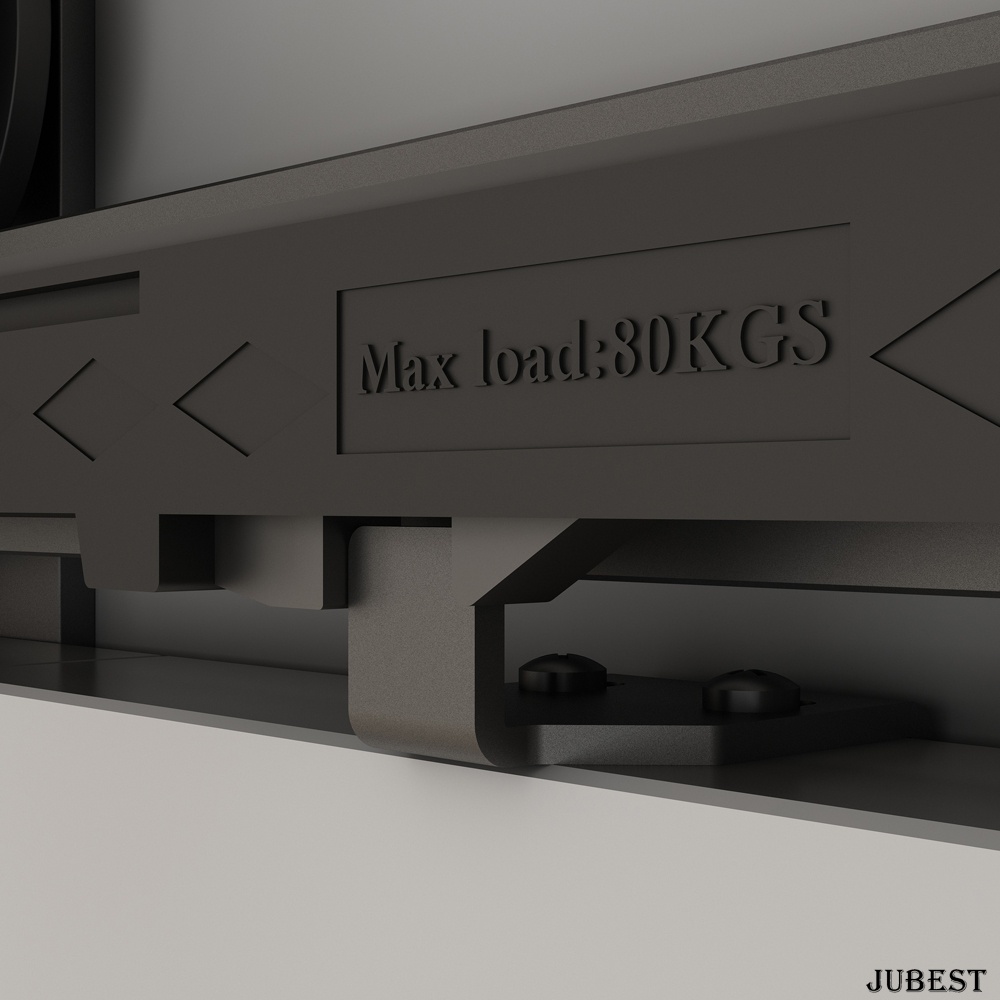

Spring pull tension:11.4 lbs (5.2kg),Load capacity:176 lbs (80kg)

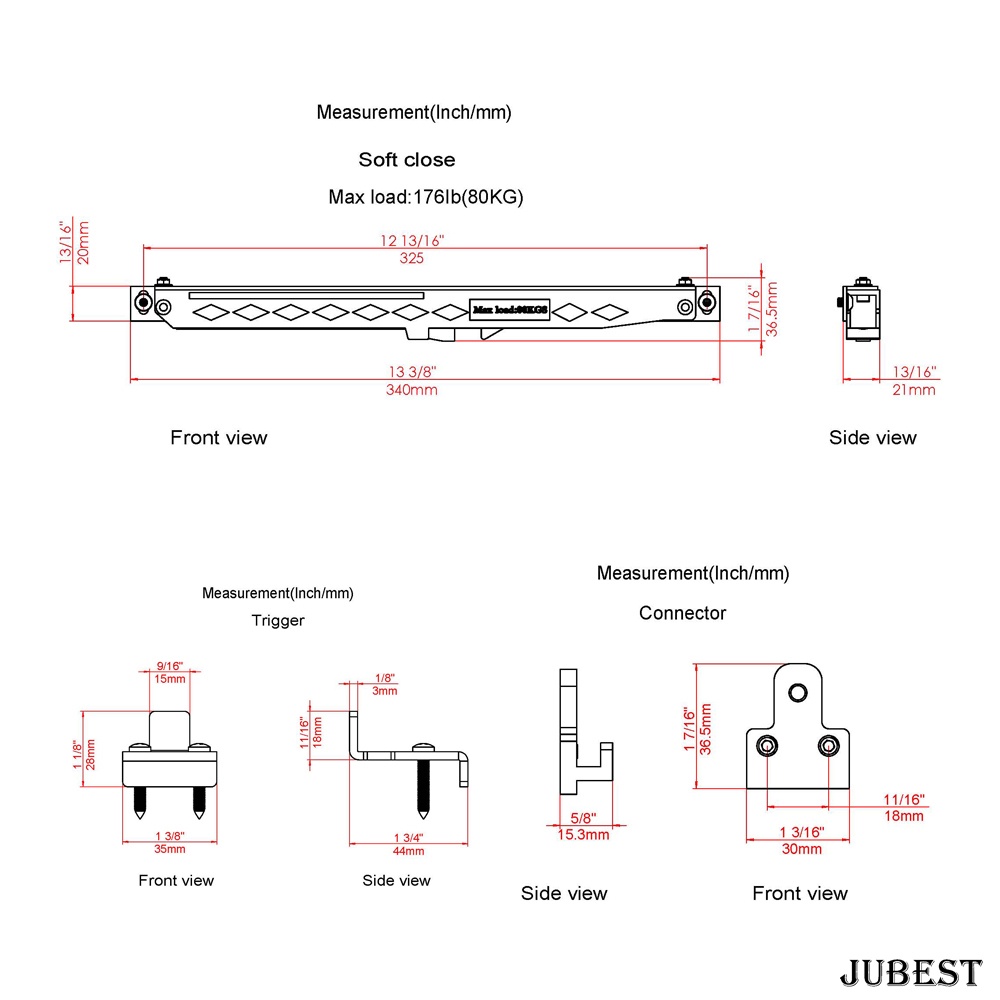

Overall length of soft close:13-3/8 inches (34cm)
Overall height of clips:1-7/16 inches (3.65cm)
Overall height of actuator:11/16 inches (1.75cm)
